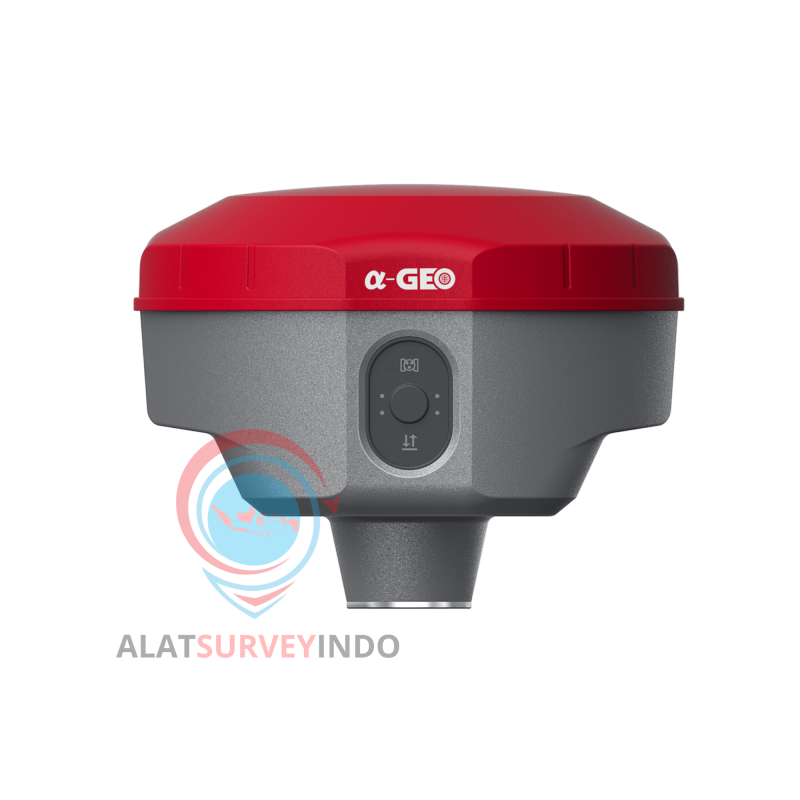

GNSS RTK ALPHA GEO MATRIX II
GNSS RTK ALPHA GEO Matrix II AR+LASER
GNSS RTK Alpha Geo Matrix II membawa fitur terbaru AR CAMERA Ketika titik pengintaian ditandai langsung di tanah, surveyor dapat dengan mudah menemukan lokasi pasti dari titik pengintaian tersebut. Dengan mengikuti tanda panah pada peta kehidupan nyata, Anda dapat mengintai titik-titik sekaligus, tanpa harus menggerakkan tiang ke depan dan ke belakang, sehingga pekerjaan pengintaian menjadi lebih akurat dan efisien.
Security policy
Pembelian dijamin aman
Delivery policy
Gratis ongkir se-JOBODETABEK
Return policy
Garansi Resmi dan Jaminan kemudahan retur
FITUR a- GEO MATRIXII :
- Multi constellation 1408 Satelit
- AR Camera
- Worry-free Storage 64GB
- WiFi and WebUl
- IMU Tilt Sensor 120 Derajat
- GSM & UHF radio 410 MHz to 470 MHz
- Battery & Power 7000mAh 12 jam
- 1P67
- Working Mode Static, Network RTK, UHF RTK, PPK & etc.
SPESIFIKASI :
| Performance specification | |
| Satellite | GPS: L1C/A, L1C, L2P(Y), L2C, L5 |
| GLONASS: L1, L2, L3 | |
| BEIDOU: B1I, B2I, B3I, B1C, B2a, B2b | |
| GALILEO: E1, E5a, E5b,E6 | |
| QZSS: L1, L2, L5, L6 | |
| SBAS: L1, L5 | |
| IRNSS: L5 | |
| Channels | 1408 tracking Channels |
| Cold start | <60 s |
| Hot start | <15 s |
| Positioning output rate | 1Hz – 20Hz |
| Signal Reacquisition | <1s |
| RTK Initialization time | <10s |
| Initialization Reliability | >99.99% |
| Time accuracy | 20 ns |
| Positioning | |
| Code differential GNSS positioning | Horizontal: 0.25 m + 1 ppm RMS Vertical: 0.50 m + 1 ppm RMS SBAS differential positioning accuracy²: typically <5m 3DRMS |
| Static GNSS surveying | Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS |
| Real Time Kinematic Surveying | |
| Single Baseline < 30 KM | Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1ppm RMS |
| Network RTK | Horizontal: 8 mm + 0.5 ppm RMS Vertical: 15 mm + 0.5 ppm RMS |
| Physical | |
| Material | Magnesium alloy |
| Dimensions | 120mm*72mm ( without bottom connector 20mm) |
| weight | 0.76kg |
| Operating temperature | -40°C to + 75°C |
| Storage temperature | -55°C to + 85°C |
| Protection IP | IP67 dust proof, protected from 30min immersion to depth of 1m |
| Shock | Survive a 2m pole drop onto concrete |
| Vibration | MIL-STD-810G |
| Humidity | 100%, condensing |
| Power Supply | |
| Battery | Power: 9~24V DC external power input on 5 pin LEMO port |
| Support USB Type-C fast charging | |
| Internal 7000mAh-7.4V lithium-ion battery | |
| Battery Life | |
| Rover Mode: 12 hours | |
| Base Mode: 7 hours | |
| Static Mode: 15 hours | |
| Communication & Data Storage | |
| I/O interface | LEMO port (5pin) Supports power input, serial port control, and external radio communication |
| USB Type-C port Data download / Charging | |
| Sim card slot Supports Nano-SIM | |
| Antenna port UHF antenna interface | |
| Radio modem | Transmit power 1/1.5w switchable |
| Frequency band 410MHz-470MHz; supports to set the frequency | |
| Protocols TrimTalk450s, SOUTH, Satel,PCC-EOT | |
| Cellular | Integrated full frequency multi band 4G modem, supports WCDMA/CDMA2000/TDD-LTE/FDD-LTE |
| WIFI | 802.11 b/g standard, access point & client mode, supports access to hotspot for correction transmission |
| Bluetooth | Bluetooth 5.2 Classical/BLE Proprietary double-mode |
| Data format | RTCM2x, RTCM3x, CMR & CMR+, sCMRx |
| RINEX, NMEA outputs | |
| Storage | 64GB internal memory, supports cyclic storage; with ability to collect over one year raw observation based on 5 seconds interval |
| Camera | |
| AR | 5M high-definition camera with large viewing angle and support for live scene lofting |
| Laser assisted | 5M high-definition camera, large viewing angle, auxiliary laser measurement and aiming |
| System integration | |
| OS system | Intelligent LINUX operating system |
| Tilt Compensation | IMU up to 120°(Calibration free) |
| Supported controllers | All android devices with supported software |
| Design | |
| Button | Power key |
| Indicator | Power indicator, data link indicator, satellite indicator, Bluetooth indicator |
| Voice | Intelligent voice prompts |
| WEBUI | Support WEBUI configuration |
INCLUDE :
- Base
- Rover
- Controller
- Pole Carbon
- Tripod Statif
- Tribrach Adapte
- Antena Internal
- Charger
- Kabel Download Data
- Box Hardcase
HARGA TERUPDATE BISA HUBUNGI DI NOMOR WA YANG TERLAMPIR
Jual GPS Geodetic Alpha Geo MATRIX II GNSS dengan harga murah dan garansi resmi dari distributor. Dapatkan produk terbaik dari merek Alpha Geo dengan spesifikasi lengkap.
