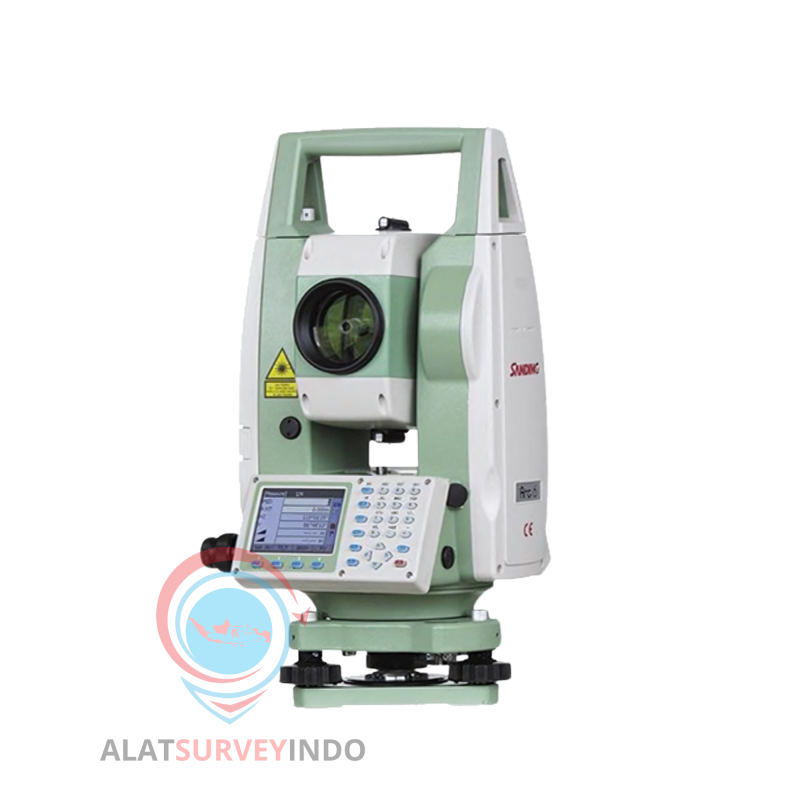

TOTAL STATION SANDING ARC 6
SANDING ARC 6
Total Station kini hadir dengan harga yang murah dan ekonomis, tentunya dengan fitur-fitur yang sangat canggih tidak kalah dengan merk lain yang ada di pasaran.
Security policy
Pembelian dijamin aman
Delivery policy
Gratis ongkir se-JOBODETABEK
Return policy
Garansi Resmi dan Jaminan kemudahan retur
Features :
3.5″ true color display
Reflectorless range up to 800m (1500m available)
Sensitive and precise compensator
Automatic temperature and pressure sensor
SD card, miniUSB, RS232 supportable
Abundant surveying programs
Specifications :
| Arc 6 | |
| TELESCOPE | |
| Tube Length | 154mm |
| Objective Lens Diameter | Telescope: 45mm; EDM: 50mm |
| Magnification | 30X |
| Image | Erect |
| Field of View | 1°30’ |
| Resolving Power | 3” |
| Min. Focus | 1.0m |
| DISTANCE MEASUREMENT | |
| Single Prism | 5000m *1 |
| Non-Prism | 800m*2 |
| Accuracy -Prism Mode | ±(2mm+2ppm x D)m.s.e. *3 |
| -Non-Prism Mode | 0-300m:±(3mm+2ppm x D)m.s.e. *3 |
| 300m-800m: ±(5mm+3ppm x D)m.s.e. *3 | |
| Measuring time | fine: 0.3s; tracking: 0.1s *4 |
| Atmospheric Correction | T-P Sensor, Auto Detect and Correct |
| Prism Constant | Manual Input, Auto Correction |
| ANGLE MEASUREMENT | |
| Method | Absolute Encoding |
| Detecting System | H: 2 sides V: 2 sides |
| Min Reading | 0.5”/1”/5”10” selectable |
| Accuracy | 2” |
| Diameter of Circle | 79mm |
| Vertical Angle 0° | Zenith: 0°/Horizontal:0° |
| Unit | 360°/400gon/6400mil |
| DISPLAY | |
| Size | 3.5”; 320*240 Dot Matrix |
| No.of Display | 2 Color Screens |
| Keyboard | Alphanumeric |
| TILT CORRECTION | |
| Tilt Sensor | Dual Axis |
| Method | Liquid Electric |
| Range | ±3′ |
| Setting Unit | 1” |
| LEVEL SENSITIVITY | |
| Plate Level | 30”/2mm |
| circular vial | 8’/2mm |
| OPTICAL PLUMMET(OPTIONAL:INTERNAL LASER PLUMMET) | |
| Image | Erect |
| Magnification | 3X |
| Focusing Range | 0.3m ~ ∞ |
| Field of View | 5° |
| DATA STORAGE INTERFACE | |
| Storage | Internal Memory: 4MB; Max.SD card:32GB |
| Data Interface | SD-card/Mini USB/RS232C |
| GENERAL | |
| Laser Class *5 -EDM | Class IIIA |
| -Laser Plummet | Class II |
| Working Temperature | -20°C~ + 50°C |
| Battery Type | Rechargeable Lithium Battery |
| Battery Voltage | DC 7.4V |
| Working Time | 8h |
| Water & Dust Proof | IP55 |
