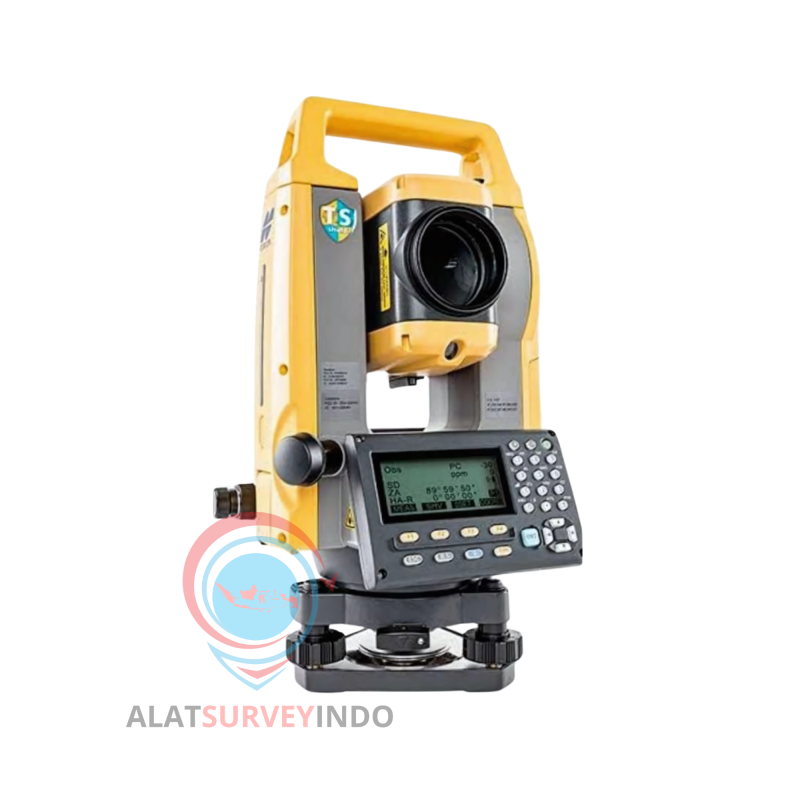

TOTAL STATION TOPCON GM-105

• 1.000 m rentang non-prisma
• 6.000 m rentang prisma
• Akurasi sudut “terbaik di kelasnya” 1.
• Hingga 32 GB penyimpanan
• IP66 tahan air / debu-bukti
• Kompatibel dengan thumb drive standar industri
• Daya tahan baterai 21 jam dalam mode normal

• Min. Resolution/Accuracy
• GM-101 : 1”/5"
• IACS : Standard on 1” and 2” models
• Compensation : Dual-axis compensator

• Prism EDM Range : 6,000 m
• Prism EDM Accuracy : 1,5 mm + 2 ppm
• Non-Prism Range : 1,000 m
• Non-Prism Accuracy : 2 mm + 2 ppm | (0,3 – 200 m)
• Measuring Time Fine: 0,9 sec | Rapid: 0,6 sec | Tracking: 0,4 sec

• LongLinkTM is not supported
• Bluetooth® Class 1,5/10 m
• USB 2.0 Slot (Host)
• RS-232C Serial

• Display Single Backlit LCD | (Dual display optional)
• Battery Operation : Up to 28 hours
• Dust/Water Rating : IP66
• Wireless Connection : Bluetooth® Class 1.5
• Operating Temp: -20oC to 60oC | Special Arctic version available : (-35 to 50oC) | Laser : plummet standart. | Optional optical plummet available in some global location

Standard Package Components :

• Main unit • Battery (BDC46C)
• Battery charger (CDC68A)
• Power Cable • Lens cap • Lens hood
• Tool pouch • Precision Screwdriver
• Lens brush • Hexagonal wrench ×2
• Cleaning cloth • Quick Manual
• Laser caution sign-board
• Carrying case • Carrying strap

Available Accessories:

• 2 x Aluminum Tripod
• 1 x Prisma Polygon
• 1 x Range Pole
• 1 x Single Prism
• 1 x Cable Data
• 1 x Software Data
