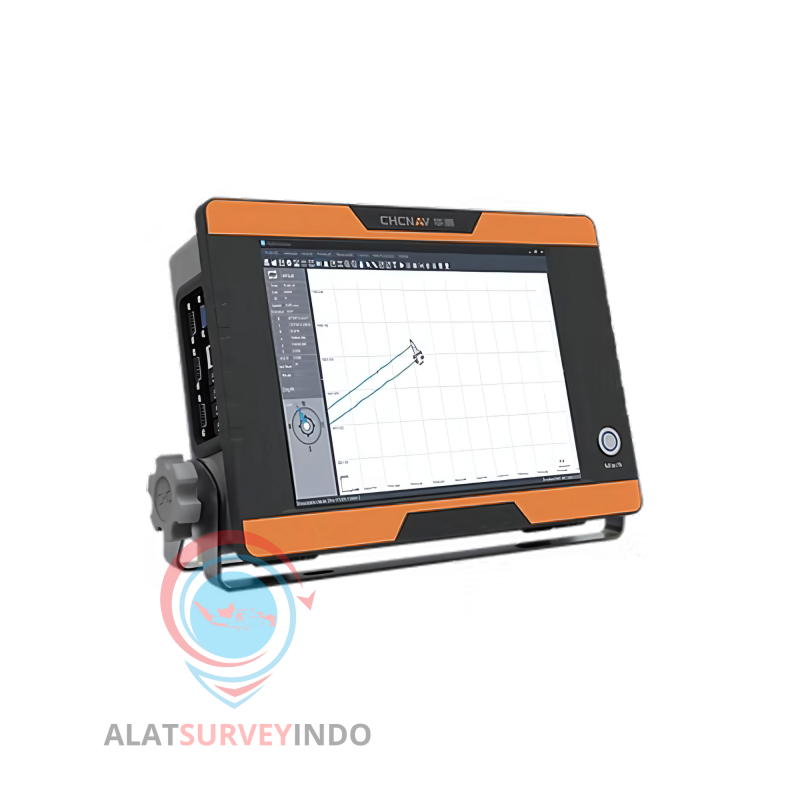

ECHO SOUNDER CHCNAV D390

CHCNAV D390

· Operating System win 10

· Memory Capacity 4 GB

· Display 12-inch resistive touch screen

· Screen Resolution 1024×768

· Menu languages English, Russian

· Data output formats User defined, CHCNAV, NMEA SDDPT/SDDBT, Original Waveform

· Power Supply DC or AC

· Measuring Range 0.15 m to 300 m

· Sound Velocity 1300 m/s to 1700 m/s

· Accuracy ±0.01m + 0.1 % of depth

Security policy

Pembelian dijamin aman

Delivery policy

Gratis ongkir se-JOBODETABEK

Return policy

Garansi Resmi dan Jaminan kemudahan retur

General
Year of initial development	2020
Max. power consumption [W]	25
Min. external DC power [V]	10
Max. external DC power [V]	30
Weight in air [kg]	4.7
Width [m]	25.8
Length [m]	36.5
Height [m]	0.95
System integration
Supported external data inputs
Mode of operation
Software platform	0.15
Min. depth of operation [m]	300
Max. frequency [kHz]	200
Max. power output [W]	500
Depth resolution [m]	0,01
Max. sounding rate [Hz]	60
Accuracy	±0.01m + 0.1 % of depth
Draught Range	0 m to 9.9 m
Sound Velocity	1300 m/s to 1700 m/s
Operating System	Win 10
Memory Capacity	4 GB DDR3L 1600 MHz
Display	12-inch resistive touch screen
Software	HydroSurvey
Measuring Range	0.15 m to 300 m
Body Storage	32 G
Screen Resolution	1024 * 768
Power Supply	DC or AC
Ping Rate	60 Hz
Performance
Transducer range	6.5 ° ± 1 °
User Interface
Main control	HydroSurvey
Menu languages	English, Russian
Other specifications
Internal data logging details
Output
Data output formats	User defined, CHCNAV, NMEA SDDPT/SDDBT, Original Waveform
Connectors
Environmental
Min. operating temperature [°C]	-30
Max. operating temperature [°C]	60
Min. storage temperature [°C]	-40
Max. storage temperature [°C]	70
Interface and User Interaction
Ethernet	support wifi
Logging unit
Portability	Portable
Weight [kg]	6.2
