GNSS RTK SANDING T7

FITUR GNSS RTK SANDING T7

  • Performa GNSS yang luar biasa
  • Tautan radio jarak jauh
  • Portabilitas terbaik
  • Pengukuran Bebas Hambatan
  • Desain inovatif
  • Survei IMU (Opsional)
  Security policy

Pembelian dijamin aman

  Delivery policy

Gratis ongkir se-JOBODETABEK

  Return policy

Garansi Resmi dan Jaminan kemudahan retur

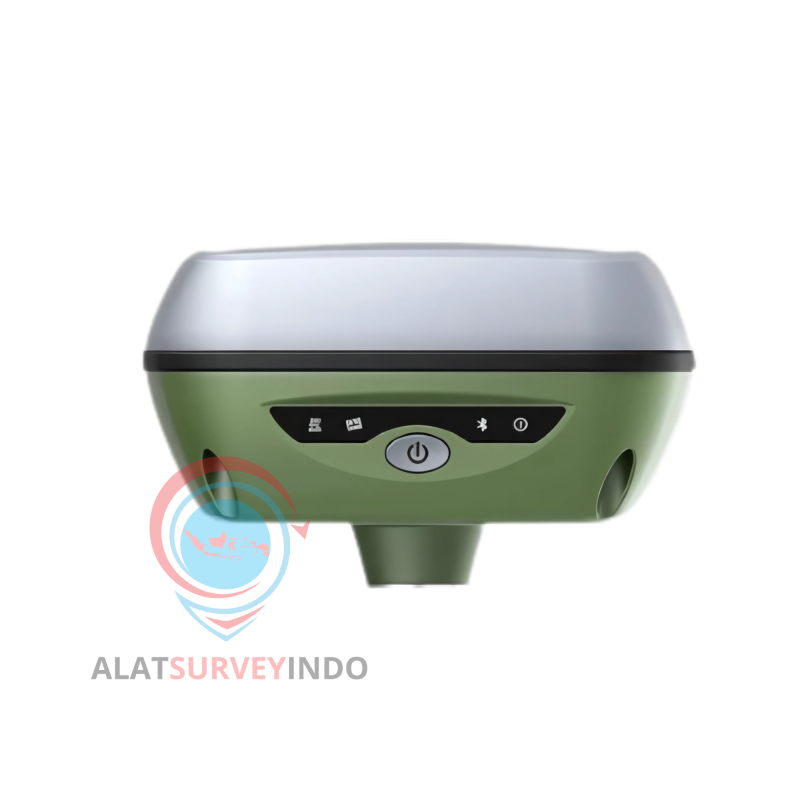

GNSS RTK Sanding T7 adalah sistem penerima GNSS dengan fungsi yang penuh dan desain yang lebih ringkas serta berperforma lebih tinggi, selain desainnya yang kokoh untuk menahan benturan dan getaran

SPESIFIKASI GNSS RTK SANDING T7

Satellite Signals
Signal tracking 965 channels
GPS: L1, L1C, L2C, L2P, L5
GLO: G1, G2, G3
BDS: BDS-2: B1I, B2I, B3I BDS-3: B1I, B3I, B1C, B2a, B2b*
GAL: E1, E5A, E5B, E6C, AltBOC*
QZSS：L1, L2C, L5*
SBAS：L1*
IRNSS：L5*
MSS L-Band（Reserve）
GNSS features Positioning output rate:1Hz~20Hz
Initialization time:<10s
Initialization reliability:>99.99%
Positioning precision
Code differential GNSS positioning Horizontal: ±0.25m+1ppm Vertical: ±0.50m+1ppm
SBAS positioning accuracy: Typically<5m 3DRMS
Static GNSS surveying H: ±2.5mm+0.5ppm | V: ±5mm+0.5ppm
Real-time kinematic surveying H: ±8mm+1ppm | V: ±15mm+1ppm
Network RTK H: ±8mm+0.5ppm | V: ±15mm+0.5ppm
IMU tilt compensation 10mm + 0.7 mm/° tilt down to 30°
IMU tilt angle 0°~60°
User interaction
Operaing system Linux
Buttons One button operation
Indicators Four indicate lights
Web UI Freely to configure and monitor the receiver by accessing to the web server via Wi-Fi and USB
Voice guide iVoice intelligent voice technology provides status and voice guide
Supporting Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish and user define
Secondary development Providing secondary development package
