GNSS RTK HI-TARGET V200

8 mm H/ 15 mm V : Real-time kinematic precision
1408/800+ Channels
GPS, GLONASS, Galileo, BDS, QZSS, SBAS, IRNSS Signal tracking
Support multi-protocol radio Receive & Transmit
8 mm +0.7 mm / °tilt Tilt Survey Performance
Advanced RTK Engine
Full-Constellation Tracking
Web UI
Compatibility with third-party software
NFC
Built-in Radio

Security policy

Pembelian dijamin aman

Delivery policy

Gratis ongkir se-JOBODETABEK

Return policy

Garansi Resmi dan Jaminan kemudahan retur

Keterangan
Detail produk

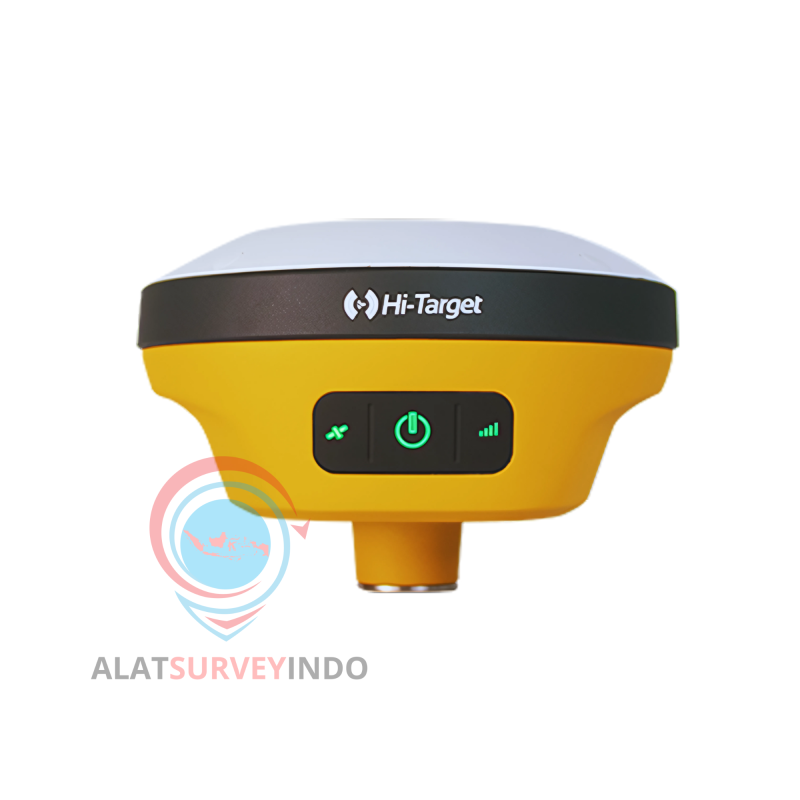

GNSS RTK Hi-Target V200

GNSS RTK Hi-Target V200 menghadirkan kinerja unggul dan efisien tinggi untuk mendukung pekerjaan anda dengan solusi yang andal. Penerapan mesin RTK canggih dan IMU 9-sumbu generasi baru menjamin peningkatan kinerja sebesar 25% bahkan di lingkungan yang paling menuntut sekalipun. Dengan demikian Anda dapat mengandalkan Hi-Target V200 untuk produktivitas yang lebih baik.

Akurasi GNSS RTK Hi-Target V200

akurasi dan presisi lebih tinggi dilengkapi dengan antena Patch berkinerja tinggi, meningkatkan kemampuan pelacakan sudut elevasi rendah dan menjaganya mempertahankan penguatan tinggi untuk satelit dengan elevasi lebih tinggi sambil melacak satelit dengan elevasi rendah.

Spesifikasi :

GNSS Signal

Channels 1408
GPS L1C(A) / L1C / L2P(Y) / L2C / L5
BDS B1l / B2I / B3I / B1C / B2a / B2b*
GLONASS L1 / L2 / L3
Galileo E1 / E5A / E5B / E6*
SBAS L1 / L2 /L5
QZSS L1 / L2 / L5 / L6*
IRNSS L5*
L-BAND* B2b-PPP

Positioning Performance

High-precision static GNSS Surveying
Horizontal : 2.5mm + 0.1ppm RMS Vertical : 3.5mm + 0.4ppm RMS
Static and Fast Static
Horizontal : 2.5mm + 0.5ppm RMS Vertical : 5mm + 0.5ppm RMS
Post Processing Kinematic (PPK / Stop & Go)
Horizontal : 8mm + 1ppm RMS
Vertical : 15mm + 1ppm RMS
Initialization time : Typically 10 min for base and 5 min for rover
Initialization reliability : Typically >99.9%
Code Differential GNSS Positioning
Horizontal :±0.25m+1ppm RMS
Vertical : ±0.5m+1ppm RMS
SBAS : 0.5m(H), 0.85m(V)
PPP : 0.1m(H), 0.2m(V)
Real Time Kinematic (RTK)
Horizontal : 8mm+1ppm RMS
Vertical : 15mm+1ppm RMS
Initialization time : Typically <10s
Initialization reliability : Typically > 99.9%
Time to first Fix
Cold start :< 45 s
Hot start :< 30 s
Signal re-acquisition :< 2 s
Hi-Fix
Horizontal : RTK+10mm / minute RMS
Vertical : RTK+20mm / minute RMS
Tilt Survey Performance : Additional horizontal pole-tilt uncertainty typically less than
8 mm +0.7 mm / °tilt (2.5cm accuracy in the inclination of 60°)

Communication

Communication : Wi-Fi:frequency 2.4GHz, Supports 802.11a / b / g / n
Bluetooth:4.2 / 2.1+EDR, 2.4GHz
Internal UHF Radio
Frequency:410-470MHz Channel:116 (16 scalable)
Transmitting power:0.5W / 1W / 2W adjustable
Supports multi-communication protocols : HI-TARGET, TRIMTALK450S,
TRIMMARK III, TRANSEOT, SATEL-3AS, etc
Internal battery :
Internal 7.4V / 6800mAh lithium-ion rechargeable battery.
RTK Rover (Network) for 12 hours. Static:up to 15 hours
External power
Power consumption:4.2W Dimensions (W×H):132mm×67mm
Charging:using standard smartphone chargers or external power banks.
Weight:≤0.8kg (includes battery) Data storage:8GB ROM internal storage
